7 Types of Network Topology Explained, with Pros and Cons

Network topology is the physical or logical layout of a network. It defines how the nodes in a network are arranged and how they connect to each other.

How many types of network topology are there?

Network topology can be grouped by how devices are connected, as follows:

Point To Point

1.) Point-to-Point Topology

A point-to-point network is the most basic topology: one device connects directly to another, with no "middleman" in between. That is all there is to it. Examples include connecting a smartphone to a laptop with a USB cable, or linking two computers with a LAN cable.

‍Advantages

  • The two devices can use the full communication speed between them, so it suits sending large amounts of data continuously.
  • Data is secure, because the connection is only between two nodes.

Disadvantages

  • Not suitable for large networks.
  • As the number of nodes grows, you need more and more cables to connect them.

‍2.) Bus Topology Computers connect to a single cable called the bus. Each computer can send data independently, but only one computer can transmit at any given moment. The data travels along the whole length of the cable, and the destination computer picks it up as it passes. (All devices are connected by one cable, and each end of the cable needs a terminator.) This layout is rarely used today. Example: small networks in organizations with only a few computers, such as small offices.

Advantages

  • Cost-effective, because it uses less cable than other topologies. There is just one main cable plus a "drop line" for each connected device.
  • Simple and straightforward to use and maintain.
  • Easy to expand: just add another node to the main cable.
  • Suitable for small networks without too many devices.

Disadvantages

  • The whole network goes down if the main (trunk) cable breaks.
  • One trunk cable is shared by many devices, so the more devices you connect to a bus network, the slower it becomes.
  • There is a limit to how far a single cable can stretch (sometimes only across one room at best).
Ring Topology

‍3.) Ring Topology

A ring network connects computers with a single cable in a ring, with no central computer. Data travels around the ring and passes through every computer until it reaches the intended station. Data moves in one direction only. When a computer sends data, it goes to the next computer; if the data is not addressed to that computer, it is passed on to the next one. This continues until the data reaches the destination computer specified by the sender. (This is how Token Ring works: devices take turns to send.) This method is rarely used today. Example: connecting PCs that act as workstations or servers to a MAU, where one unit can connect up to 8 stations.

‍Advantages

  • Every node on the network has an equal right to send data.
  • Uses less cable.
  • Easy to install, and nodes are easy to add or remove.‍

‍Disadvantages

  • The cable forms a ring, so if it is damaged, the whole network stops working.
  • If a node on the network fails, it is hard to track down the faulty node.
  • Each node has to wait for its turn to send data.
Star Topology

‍4.) Star Topology

All devices connect to one central device, which controls all data flow across the network.

Still widely used today. Example: a home wireless network, where laptops, tablets, printers and smartphones all connect to a single wireless router.

Advantages

  • More robust than a bus: if the cable to one node fails, the other nodes are not affected.
  • Faults are easier to locate, because the hub sits at the center.
  • Devices can be added or removed easily without disturbing the rest of the network.

Disadvantages

  • Uses a lot of cable, because every node needs its own cable to the hub.
  • If the central hub or switch has a problem, the whole network is affected.
  • Costs more than a bus layout, because it needs a hub or switch in the middle.
Tree Topology

‍5.) Tree Topology

Similar to a star layout, but arranged like a tree: cables branch out without forming loops. This structure suits group (batch) processing, with computers at different levels connected in tiers. Example: batch processing systems, such as employee clock-in and clock-out times that are recorded every week and processed only once a month.

Advantages

  • Good for large networks divided into groups, such as organizations with separate departments for training, finance and marketing.
  • Easier to manage, because the network is divided into sections.
  • Fairly robust when configured properly. If one sub-network fails, the rest of the network is not affected.

Disadvantages

  • Costly to build, because it needs a lot of network equipment and cable.
  • Again depending on how the tree network is built, if the "top-level node" or central hub fails, the whole network may be crippled.
Mesh Topology

6) Mesh Topology

In a mesh topology, every device is connected to the others. It is similar to a star topology, but a mesh network can send data without going through a hub. Instead, routers calculate the path for sending data to each device. If a cable or router fails at any point, the system automatically calculates a new route. (This creates redundancy, which makes the network tolerant of failures.) Examples: mesh Wi-Fi wireless networks and WAN systems.

Advantages

  • Less congestion on the network, because devices do not share the same medium.
  • If one cable fails, the system is not affected, because it can still send signals.
  • High security, because data is sent directly.
  • Easy to check that data is correct.

Disadvantages

  • Needs a lot of cable, which makes it costly.
  • Limited when connecting to other topologies.

‍7.) Hybrid Topology

A computer network that combines several topologies, made up of many smaller sub-networks, to get the best performance. Example: organizations with several departments, depending on how the organization is set up.

‍Advantages

  • Cable installation does not cost much.
  • Easy to expand (easy to add nodes).
  • Problems are easy to locate.

Disadvantages

  • Errors can occur easily, because every computer is connected to a single cable. If the cable breaks at any point, most or all of the other computers on the system stop working too.
  • Faulty nodes are hard to find. Only one computer can send a message on the cable at any one time, so with many computers the network can become congested and slow down.

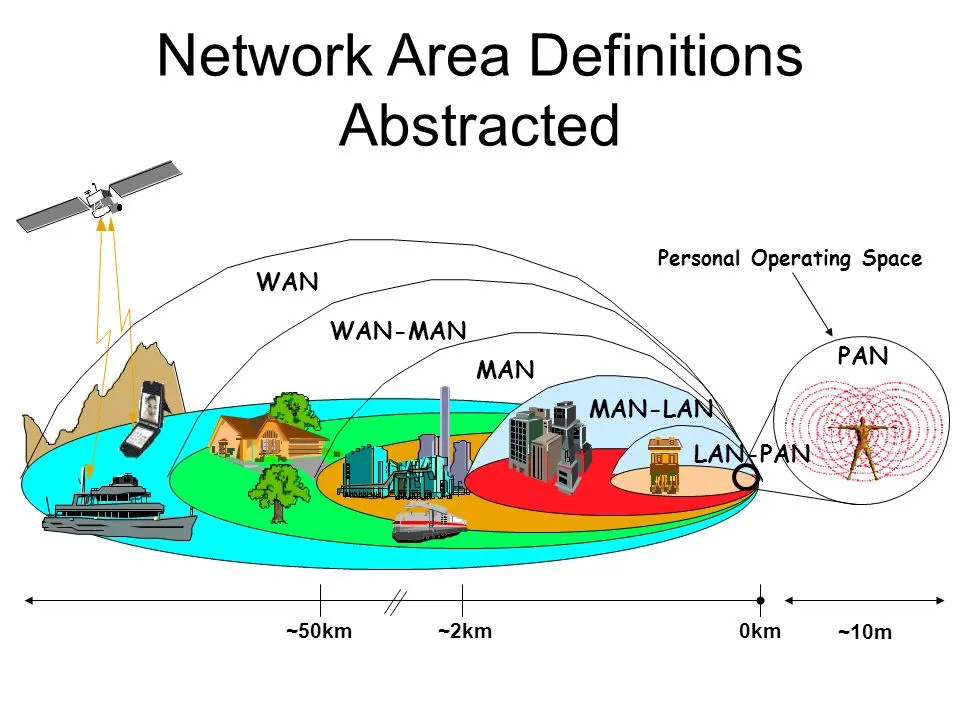

Types of Networks

Personal Area Network (PAN) A small network with a short range of up to about 10 meters. It is convenient, flexible and usable almost anywhere, but it is limited in range, connection speed and the number of devices it supports. Example: You use your mobile phone as a hotspot for your laptop or iPad in your bedroom. This kind of connection is a PAN.

Local Area Network (LAN) A medium-sized network that covers an organization, or a distance of up to about 10 kilometers. It is very fast and lets many types of devices work together, so it suits companies, organizations, and small to medium-sized offices. Its limitation is that the software developed for LAN systems is mostly specialized software, which is relatively expensive compared with other types of network. Example: A colleague sends a print job from their desk to the printer on your desk in the same office. This kind of connection is a LAN.

Metropolitan Area Network (MAN) A large network covering a city, or up to about 100 kilometers. It connects several LANs together to extend the distance. Because it reaches further than a LAN, resources can be shared more widely, which cuts the cost of buying duplicate equipment. It suits large companies, organizations or offices with branches or buildings spread within that range. However, the longer distance means extra connection equipment is needed, which raises costs. Example: Your company is opening a new branch in a nearby province and needs to use resources or services from the head office. This kind of connection is a MAN.

Wide Area Network (WAN) A very large network with worldwide coverage, made up of LANs and MANs in huge numbers. Its strength is fast, convenient access to information. Its limitation is that it needs a lot of equipment, which makes it more expensive than other types of network.
Example
: You make a video call to a friend abroad. This kind of connection is a WAN.

Global Area Network (GAN) A network that supports mobile devices across wireless LANs and satellite coverage areas. A current example is Starlink, a satellite internet constellation.

Putting it all together

When your home has no internet, so you share an internet connection to work on your laptop, that is a PAN. When your home later installs a router and access point to provide Wi-Fi for the whole family, that is a LAN. Your home gets its internet from an ISP (Internet Service Provider), such as AIS, TOT, CAT or TRUE, through the provider's branch in your city. This is called a MAN. And when you need to work remotely over the internet, for example fixing code for a customer in another province or abroad, that is called a WAN.
